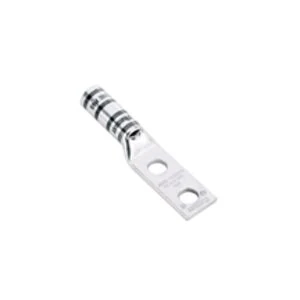

Panduit LCC6-14DW-L, 2-Hole Lug #6 AWG, 1/4 in. Stud 1 in. Centers
SKU:LCC6-14DW-L
● In stock
ea
Description
Panduit LCC6-14DW-L is a two-hole, long-barrel copper compression lug for #6 AWG conductor, drilled for 1/4 in. studs on 1 in. centers - the wider NEMA pattern used on power distribution pads and larger ground bars. The long barrel takes the maximum number of crimps so the joint meets the premium pull-out strength this style is chosen for, and the inspection window confirms the conductor is fully home before the die closes. Tin plating inhibits corrosion in the termination, and the blue color-coded barrel is marked with Panduit and specified competitor die index numbers for correct die selection.
Panduit LCC6-14DW-L Technical Specs
Product Classification
| Product type | Compression lug |
|---|---|
| Lug style | Standard compression |
| Barrel | Long barrel |
| Number of bolt holes | 2 hole |
| Inspection window | Yes |
Conductor & Termination
| Conductor size | #6 AWG |
|---|---|
| Conductor Material | Copper |
| Stud hole size | 1/4 in. |
| Hole spacing | 1 in. on center |
Materials & Finish
| Lug material | Copper |
|---|---|
| Plating | Tin |
| Barrel color code | Blue |
| Die index marking | Panduit and specified competitor die index numbers |
Electrical & Temperature Ratings
| Voltage Rating | Up to 35 kV, UL Listed and CSA Certified |
|---|---|
| Temperature rating | 90°C (194°F) |
| Rating condition | When crimped with Panduit or specified competitor tools and dies |
| Wide wire range-taking | UL Listed and CSA Certified with Panduit Uni-Die dieless crimping tools |
Compliance & Certifications
| UL listed | Yes |
|---|---|
| CSA certified | Yes |
| NEBS level 3 | Tested by Telcordia |
| J-STD-607-A | Meets requirements |
| TIA-942 | Meets network systems grounding requirements |
| RoHS Compliant | Yes |
| UNSPSC code | 39121400 |
Packaging
| Sold as | Each |
|---|
Panduit LCC6-14DW-L Applications
- Lands #6 AWG grounding and bonding conductors on pads drilled 1/4 in. at the 1 in. NEMA spacing.
- Terminates bonding conductors at switchgear, panelboard and busway ground pads where the wider bolt pattern is standard.
- Bonds equipment and rack grounding busbars to J-STD-607-A and TIA-942 in data center build-outs.
- Provides a two-bolt termination that cannot rotate on a single fastener when the conductor is pulled or vibrated.
