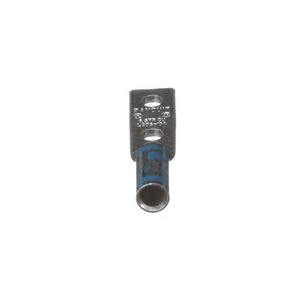

Panduit LCD6-10A-L, 2-Hole Standard Barrel Lug #6 AWG, #10 Stud Blue

Panduit LCD6-10A-L is a two-hole, standard-barrel copper compression lug that terminates #6 AWG conductor on #10 screw studs at 0.63 in. centers. The standard barrel keeps the lug short where there is little room behind a ground bar or inside a crowded enclosure, while the two-bolt tongue still gives a termination that cannot rotate under load. An inspection window lets the installer confirm full conductor insertion before crimping, the tin plating inhibits corrosion, and the blue color-coded barrel is marked with Panduit and specified competitor die index numbers so the correct crimp die is selected.

Panduit LCD6-10A-L Technical Specs

Product Classification

Product type	Compression lug
Lug style	Standard compression
Barrel	Standard barrel
Number of bolt holes	2 hole
Inspection window	Yes

Conductor & Termination

Conductor size	#6 AWG
Conductor Material	Copper
Stud hole size	#10 stud
Hole spacing	0.63 in. (5/8 in.) on center

Materials & Finish

Lug material	Copper
Plating	Tin
Barrel color code	Blue
Die index marking	Panduit and specified competitor die index numbers

Electrical & Temperature Ratings

Voltage Rating	Up to 35 kV, UL Listed and CSA Certified
Temperature rating	90°C (194°F)

Compliance & Certifications

UL listed	Yes
CSA certified	Yes
Standards met	CSA C22.2 No. 65-13; UL 486A-486B, File E52164
RoHS Compliant	Yes
UNSPSC code	39121400

Packaging

Sold as	Each

Panduit LCD6-10A-L Applications

• Terminates #6 AWG grounding and bonding conductors on ground bars drilled for #10 screws at 5/8 in. centers.
• Fits shallow enclosures and crowded gutters where a long-barrel lug would not clear the cover.
• Bonds equipment chassis, racks and enclosures where a two-bolt connection is specified over a single stud.
• Lands smaller grounding electrode and equipment bonding jumpers at panel and cabinet ground pads.
