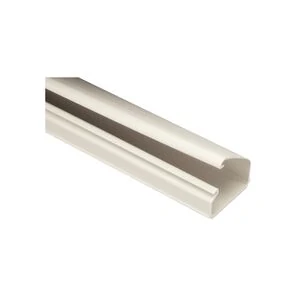

Panduit LD10IW10-A, Pan-Way LD10 Latching Raceway Off White, 10 ft. Length

Panduit LD10IW10-A is a 10 ft. length of Pan-Way LD10 surface raceway in off white. It is a one-piece latching channel with an integrated hinged cover, so cable is laid in along the run and the cover presses shut rather than being handled as a second part that gets lost or mismatched. A factory-applied adhesive backing sets the channel on a clean, smooth wall without fasteners. The 1.5 in. by 0.94 in. rigid PVC profile conceals and protects data, voice and video cable, and terminates into surface mount outlet boxes.

Panduit LD10IW10-A Technical Specs

Product Classification

Product type	Surface raceway channel
Product line	Pan-Way LD10
Channel	Single
Construction	Non-metallic
Latching	Yes
Cover	Integrated, one-piece hinged design

Dimensions

Length	10 ft.
Width	1.5 in.
Depth	0.94 in.

Materials & Finish

Material	Rigid PVC
Color	Off white

Installation & Termination

Mounting	Factory-applied adhesive backing
Cable installation	Cables laid into the open channel, cover latches closed
Terminates using	Surface mount outlet boxes or Panduit Mini-Com Surface Mount Boxes

Compliance & Certifications

UL 5A	Listed
UL compliant	Yes
UL94V-0	Yes
FT4 rated	Yes
TIA/EIA standards	Meets
CE	Compliant with LVD 2006/95/EC (EN50085-1, EN 50085-2-1)
RoHS Compliant	Yes
UNSPSC code	39131709

Panduit LD10IW10-A Applications

• Runs data, voice and video cable along finished perimeter walls, baseboards and ceilings where opening the wall is not an option.
• Adds drops in occupied schools, hospitals and offices, since the adhesive backing means no dust and no fasteners.
• Extends cabling to a new workstation or wall plate in a leased space that has to be handed back unmarked.
• Protects and conceals exposed patch and camera runs that would otherwise be stapled or left loose.
