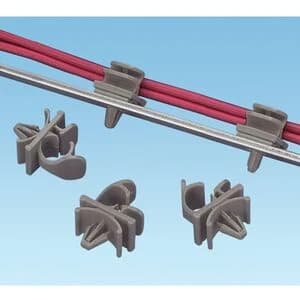

Panduit LWC50-H25-L, Latching Wire Clip Push Mount 0.5 in. Natural

Panduit LWC50-H25-L is a latching wire clip that pushes into a 1/4 in. mounting hole and snaps shut around a bundle up to 0.50 in. (12.7mm) across. The push barb grips the panel from behind, so the clip installs from one side with no screw, adhesive or rear access, and the latch reopens to add or drop a cable without cutting the clip off - a reusable alternative to a cable tie on runs that change. The body is natural nylon and measures 1.25 in. by 0.76 in. by 0.78 in., small enough to sit between components on a crowded back pan.

Panduit LWC50-H25-L Technical Specs

Product Classification

Product type	Latching wire clip
Mounting method	Push barb (push mount)
Releasable	Yes, latch reopens
Adhesive backed	No
Screw applied	No

Dimensions & Bundle Range

Maximum bundle diameter	0.50 in. (12.7mm)
Mounting hole	1/4 in.
Overall length	1.25 in.
Overall width	0.76 in.
Overall height	0.78 in.

Color & Finish

Color	Natural

Compliance & Certifications

UNSPSC code	31162900

Packaging

Sold as	Each
Supplier standard package	50 pieces; we sell singly

Panduit LWC50-H25-L Applications

• Routes and secures cords and small cable bundles to sheet-metal panels that are already punched with 1/4 in. holes.
• Holds cable on assemblies where only one side of the panel is reachable after build, since the barb installs from the front.
• Suits runs that get re-worked, because the latch opens to add or remove a cable instead of being cut away.
• Dresses power and signal leads apart inside equipment enclosures and machine bases.
