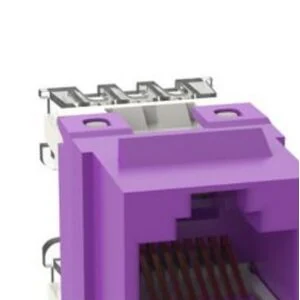

Panduit NK688MVL, NetKey Cat 6 Punchdown Jack Module Violet

Panduit NK688MVL is a NetKey Category 6 punchdown jack module in violet - an 8-position, 8-wire keystone jack that terminates horizontal cable on IDC contacts and snaps into NetKey faceplates, module frames, patch panels and surface-mount boxes. The wiring label is A/B universal, so the same module can be punched to T568A or T568B without stocking two part numbers. Violet is typically assigned to a specific service on a color-coded site, letting a technician see at the outlet what the port is for. The jack is rated for 2500 connection cycles.

Panduit NK688MVL Technical Specs

Product Classification

Product type	Modular jack (keystone)
Product line	NetKey
Style	Punchdown jack module
Number of ports	1

Performance Category

Performance category	Category 6
Positions / wires	8-position, 8-wire
Cable type	UTP
Standards performance	Exceeds ANSI/TIA-568.2-D and ISO 11801 channel and component requirements for Category 6

Termination & Wiring

Termination	IDC punchdown, 110 style
Wiring scheme	A/B universal (T568A or T568B)
Interface	RJ45
Connection cycles	2500

Power over Ethernet

IEEE 802.3af / 802.3at	Supported
IEEE 802.3bt type 3 and type 4	Supported

Color & Identification

Color	Violet

Compliance & Certifications

IEC 60603-7	Meets
UL 1863	Yes
UL 2043	Yes
RoHS Compliant	Yes
UNSPSC code	39121444

Packaging

Sold as	Each

Panduit NK688MVL Applications

• Terminates Category 6 horizontal cable at work-area outlets, patch panels and surface boxes with a punchdown tool.
• Color-codes a particular service or department at the faceplate so ports are identifiable without a label.
• Serves PoE endpoints including cameras, access points and 802.3bt Type 3 and Type 4 devices.
• Suits sites that mix T568A and T568B legacy wiring, since the module carries both schemes.
