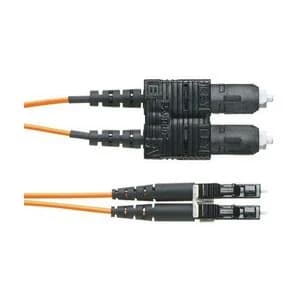

Panduit NKFP92ERLSSM002, 2-Fiber OS2 Patch Cord LC-SC 2m Riser

Panduit NKFP92ERLSSM002 is a two-fiber NetKey patch cord terminated LC on one end and SC on the other, built on OS2 single-mode fiber with a 1.6mm jacket and rated riser (OFNR). The LC-to-SC pairing is what an interconnect needs when current LC equipment ports have to reach an existing SC patch field, and the small 1.6mm cable keeps a two-fiber cord easy to dress in a crowded enclosure. At two meters it covers interconnect and cross-connect work in entrance facilities, telecommunications rooms, data centers and at the desk.

Panduit NKFP92ERLSSM002 Technical Specs

Product Classification

Product type	Fiber optic patch cord
Product line	NetKey
Fiber count	2
Fiber type	OS2 single-mode
Connector type	LC to SC

Cable & Jacket

Jacket diameter	1.6mm
Flame rating	Riser (OFNR)

Dimensions

Length	2m (6.56 ft.)

Compliance & Certifications

Connector performance	TIA/EIA 568-C.3-1; ISO/IEC 61755-3-1
Connector interface	IEC 61754-7
Intermateability	TIA-604-2-A, -3-A and -10-A (FOCIS 2, 3 and 10)
RoHS Compliant	Yes

Packaging

Sold as	Each
UNSPSC code	26121650

Panduit NKFP92ERLSSM002 Applications

• Interconnects LC-terminated equipment to an existing SC single-mode patch field without a hybrid adapter in the path.
• Cross-connects single-mode backbone fiber in an entrance facility or telecommunications room.
• Patches pre-terminated cassettes between main, horizontal and equipment distribution areas in a data center.
• Extends campus and inter-building single-mode links to equipment at the desk or in a small telecom closet.
