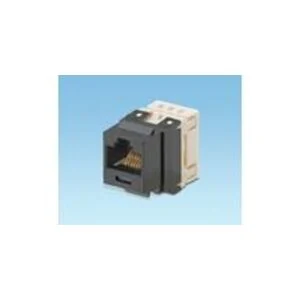

Panduit NKP5E88MBU, NetKey Cat 5e Punchdown Jack Module Blue
SKU:NKP5E88MBU
● In stock
ea
Description
Panduit NKP5E88MBU is a NetKey Category 5e keystone jack module that terminates four-pair unshielded twisted pair to a single eight-position, eight-wire outlet. Conductors land on punchdown IDC contacts wired for either T568A or T568B, so one part number covers both scheme conventions, and the terminal layout holds each pair's twist right up to the contact to protect link and channel margin. The keystone footprint drops into NetKey faceplates, surface mount boxes, modular patch panels and keystone adapter panels. Supplied in blue for port and service color coding.
Panduit NKP5E88MBU Technical Specs
Product Classification
| Product type | Keystone jack module |
|---|---|
| Product line | NetKey |
| Performance category | Category 5e |
| Number of ports | 1 |
| Contact configuration | 8-position, 8-wire (8W8P) |
| Shielding | Unshielded (UTP) |
Termination & Cable
| Termination style | Punchdown |
|---|---|
| Contact type | IDC |
| Cable accepted | 4-pair 100 Ohm solid unshielded twisted pair |
| Conductor size | 24 AWG and 22 AWG |
Wiring & Compatibility
| Wiring scheme | T568A / T568B universal |
|---|---|
| Module format | Keystone |
| Compatible components | NetKey keystone faceplates, surface mount boxes, modular patch panels and keystone adapter panels |
Performance & Ratings
| Standards met | Exceeds the channel and component requirements of ANSI/TIA-568.2-D and ISO 11801 for Category 5e |
|---|---|
| Connector standard | IEC 60603-7 |
| Power over ethernet | IEEE 802.3af, 802.3at and 802.3bt Type 3 and Type 4 |
| Mating cycles | 2500 |
Color & Compliance
| Color | Blue |
|---|---|
| UL 1863 | Listed |
| UL 2043 | Listed |
| RoHS Compliant | Compliant |
| UNSPSC code | 39121444 |
Panduit NKP5E88MBU Applications
- Terminates horizontal Category 5e runs at the work area outlet in NetKey faceplates and surface mount boxes.
- Populates modular patch panels and keystone adapter panels in the telecommunications room, one port at a time.
- Color-codes ports by service - voice, data, building system - where several networks share a faceplate.
- Feeds PoE devices such as access points, cameras and phones on an existing Category 5e plant.
