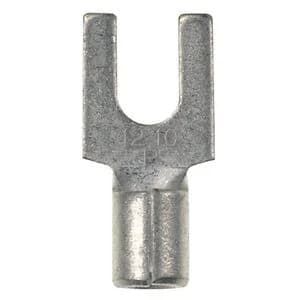

Panduit P10-10F-D, Non-Insulated Fork Terminal 12-10 AWG #10 Stud

Panduit P10-10F-D is a non-insulated fork terminal for 12 to 10 AWG conductor, sized for a #10 stud or screw. The open tongue is the reason fitters keep them on the van: the terminal slides under a loosened screw head instead of requiring the screw to come all the way out, which turns a fiddly job on a crowded terminal strip into a quick one. With no insulating sleeve, the crimp can be inspected directly and the terminal fits where a sleeve would not, or would not survive the heat. It is UL Listed under 587H and CSA Certified, and it is supplied loose rather than insulated or strip-fed.

Panduit P10-10F-D Technical Specs

Product Classification

Product type	Fork terminal
Tongue style	Fork (open tongue)
Insulated	No
Attachment	Crimp

Conductor & Stud Sizing

Wire range	12 - 10 AWG
Stud / screw size	#10

Compliance & Certifications

UL listed	Yes, 587H E52164
CSA certified	Yes, LR31212
UNSPSC code	39121400

Packaging

Sold as	Each

Panduit P10-10F-D Applications

• Lands control and power leads on terminal strips where the screw can be loosened but not removed.
• Speeds re-termination during troubleshooting, since the fork slips out without backing the screw off.
• Suits locations where an insulated sleeve will not fit between adjacent terminals or will not take the heat.
• Serves panel and machine wiring on #10 studs and screws across the 12 to 10 AWG range.
