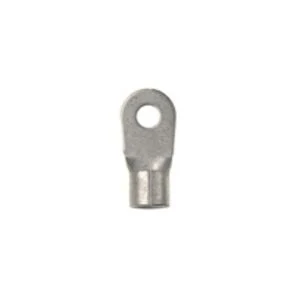

Panduit P6-38R-E, Ring Terminal 6 AWG 3/8 in. Stud Non-Insulated

Panduit P6-38R-E is a non-insulated ring tongue terminal that crimps onto 6 AWG copper and lands on a 3/8 in. stud. The closed ring cannot back off a loosened stud the way a spade tongue can, which is why ring terminals are specified wherever vibration is part of the service life. Inside the barrel, serrations bite the strands to hold tensile strength and keep contact resistance down, and the brazed seam stops the barrel splitting open under the crimp. The beveled barrel mouth makes a stiff 6 AWG conductor easy to seat fully.

Panduit P6-38R-E Technical Specs

Product Classification

Product type	Ring tongue terminal
Tongue style	Ring
Insulation	Non-insulated
Termination	Crimp

Conductor & Stud

Conductor size	6 AWG
Conductor Material	Copper
Stud size	3/8 in.

Materials & Construction

Barrel seam	Brazed
Barrel interior	Serrated
Wire entry	Internally beveled barrel

Ratings

Maximum recommended operating temperature	302°F (150°C)
Vibration service	Ring tongue retains the connection under vibration

Compliance

RoHS Compliant	Compliant
UNSPSC code	39121400

Panduit P6-38R-E Applications

• Lands 6 AWG feeders and bonding conductors on 3/8 in. studs at panels, busbars and equipment terminals.
• Terminates battery, generator and motor connections where vibration would loosen a spade tongue.
• Serves grounding and bonding work that calls for a bare, high temperature copper terminal.
• Suits applications where the termination will be taped, boot-covered or heat-shrunk after crimping.
