Panduit SE125PSC-LR0, Braided Sleeving 1.25 in. Black, 50 ft. Roll

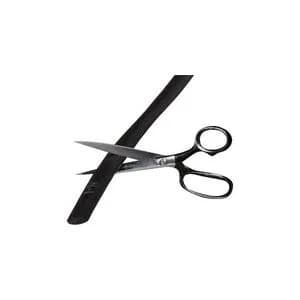

Panduit SE125PSC-LR0 is a 1.25 in. fray-resistant braided expandable sleeving that slides over a cable bundle and gives it continuous abrasion protection along the whole run. Its defining feature is the fray-resistant weave, which lets an installer cut a length with ordinary scissors without the braid unraveling at the end, so no hot knife or heat shrink end cap is needed. The open weave expands over connectors and irregular bundle shapes, stays highly flexible around bends, and will not trap heat or humidity the way a solid wall jacket does. It ships as a 50 ft. roll in black.

Panduit SE125PSC-LR0 Technical Specs

Product Classification

Product type	Braided expandable sleeving
Sleeving	Yes
Spiral wrap	No
Heat shrink tubing	No
Zipper	No
Fray resistant	Yes, cuts with scissors

Materials & Construction

Material	Polyethylene
Weave	Open braid, expandable
Dual wall	No

Dimensions

Nominal diameter	1.25 in.
Size by inch fractions	1 1/4 in.
Roll length	50 ft.

Color & Identification

Color	Black
Military color code	Black

Compliance & Certifications

UL recognized	Yes, E116868
CSA certified	Yes
Mil spec	No
Passenger rail standards	Compliant with U.S. and European requirements
RoHS Compliant	Yes
UNSPSC code	39121723

Packaging

Standard package quantity	1 roll (50 ft.)
Sold as	Each (one roll)

Panduit SE125PSC-LR0 Applications

• Protects wire, cable and tubing from abrasion where a bundle crosses an edge, panel cutout or moving assembly.
• Expands over connectors and irregular bundle profiles that a fixed-diameter conduit or jacket cannot pass.
• Suits transit and passenger rail builds that call out U.S. and European rail material standards.
• Lets a field crew cut sleeving to length with scissors and terminate it without a heat source or end cap.
