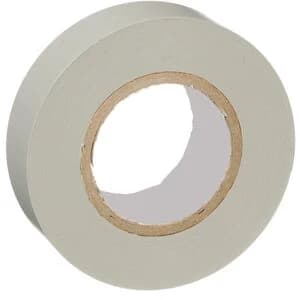

Panduit ST17-075-66GY, StrongHold Electrical Tape 3/4 in. x 66 ft. Gray

Panduit ST17-075-66GY is a StrongHold general purpose PVC electrical tape, 3/4 in. wide by 66 ft. long and 7 mil thick, in gray. The pressure-sensitive adhesive is non-corrosive and needs no heat, moisture or catalyst - it bonds on contact, which is the whole point of a tape an electrician applies one-handed in a box. High elongation lets it conform tightly around irregular shapes and conductor bundles without tenting at the edges. Rated as primary insulation for splices to 600 V and 80°C, and supplied individually cellophane wrapped.

Panduit ST17-075-66GY Technical Specs

Product Classification

Product type	Electrical insulating tape
Product line	StrongHold ST17
Grade	General purpose
Adhesive	Pressure sensitive, non-corrosive
Liner	None

Dimensions

Width	3/4 in.
Length	66 ft.
Thickness	0.007 in. (7 mil)

Electrical & Thermal Ratings

Primary insulation rating	Up to 600 V
Temperature rating	80°C (176°F)
Elongation	High, for conformability

Color & Identification

Color	Gray
Use	Phase and circuit identification, insulation

Compliance & Certifications

UL 510	Meets
CSA C22.2 No. 197	Meets
RoHS Compliant	Meets RoHS 2002/95/EC
UNSPSC code	31201502

Packaging

Supplied	Individually cellophane wrapped
Sold as	One roll

Panduit ST17-075-66GY Applications

• Insulates splices and taps to 600 V in commercial and industrial construction.
• Color-codes phases, circuits and voltage classes where a permanent marking is required.
• Wraps irregular shapes and bundle transitions that a stiffer tape will not conform to.
• Serves maintenance and repair work where a general purpose tape has to be on the truck.
