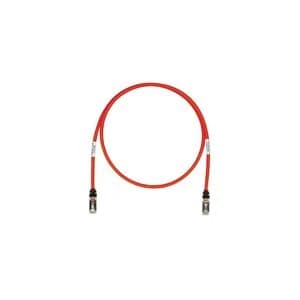

Panduit STP6X10RD, TX6A Cat 6A S/FTP Patch Cord 10 ft. Red

Panduit STP6X10RD is a 10 ft. Category 6A S/FTP patch cord with TX6A 10Gig modular plugs on both ends, in red. Red is the color installations reserve for something that must not be patched by accident, and a colored cord does more for traceability in a dense field than any label. Underneath, it is a full screened and foiled Category 6A assembly: individual pair foils plus an overall screen, which is what holds 10 Gb/s margin against alien crosstalk from the cords bundled beside it. Low smoke zero halogen jacket.

Panduit STP6X10RD Technical Specs

Product Classification

Product type	Copper patch cord
Product line	TX6A 10Gig
Performance category	Category 6A
Shielding	S/FTP - screened / foiled twisted pair
Connector type	RJ45 to RJ45
Plug type	TX6A 10Gig modular plug, both ends

Length & Color

Length	10 ft. (3.05 m)
Color	Red

Performance

Data rate	10 Gb/s
Mating cycles	2500
Power over ethernet	IEEE 802.3af, 802.3at and 802.3bt Type 3 and Type 4

Jacket & Fire Performance

Jacket	Low smoke zero halogen (LSZH)
IEC 60332-1	Meets - flame propagation
IEC 60754-1	Meets - halogen content
IEC 61034-2	Meets - smoke density

Compliance & Certifications

ANSI/TIA-568.2-D	Exceeds Category 6A
ISO 11801	Exceeds Class EA
ANSI/TIA-1096-A	Meets
IEC 60603-7	Meets
UL 1863	Approved
CE	Compliant
RoHS Compliant	Compliant
UNSPSC code	43223303

Panduit STP6X10RD Applications

• Marks a distinct service in red - a secure VLAN, an out-of-band management path, a circuit that must not be repatched by mistake.
• Runs 10 Gigabit Ethernet between switches and patch panels over a screened Category 6A channel.
• Carries PoE to cameras, access points and phones on a shielded plant.
• Suits installations that specify a low smoke zero halogen jacket in occupied or enclosed spaces.
