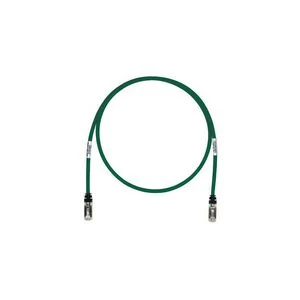

Panduit STP6X5GR, TX6A Cat 6A S/FTP Patch Cord 5 ft. Green

Panduit STP6X5GR is a 5 ft. Category 6A S/FTP patch cord with TX6A 10Gig modular plugs on both ends, in green. Green marks a service apart in a patch field - a tenant, a building system, a voice VLAN - so a technician reads the assignment off the cord rather than off a label that has fallen off. Construction is full screened and foiled Category 6A, individual pair foils under an overall screen, which is what protects 10 Gb/s margin from alien crosstalk. Low smoke zero halogen jacket.

Panduit STP6X5GR Technical Specs

Product Classification

Product type	Copper patch cord
Product line	TX6A 10Gig
Performance category	Category 6A
Shielding	S/FTP - screened / foiled twisted pair
Connector type	RJ45 to RJ45
Plug type	TX6A 10Gig modular plug, both ends

Length & Color

Length	5 ft. (1.52 m)
Color	Green

Performance

Data rate	10 Gb/s
Mating cycles	2500
Power over ethernet	IEEE 802.3af, 802.3at and 802.3bt Type 3 and Type 4

Jacket & Fire Performance

Jacket	Low smoke zero halogen (LSZH)
IEC 60332-1	Meets - flame propagation
IEC 60754-1	Meets - halogen content
IEC 61034-2	Meets - smoke density

Compliance & Certifications

ANSI/TIA-568.2-D	Exceeds Category 6A
ISO 11801	Exceeds Class EA
ANSI/TIA-1096-A	Meets
IEC 60603-7	Meets
UL 1863	Approved
RoHS Compliant	Compliant
UNSPSC code	43223303

Panduit STP6X5GR Applications

• Color-codes a service in green - a separate tenant, a building system, a voice VLAN - on a shielded plant.
• Patches switch to panel within a cabinet without leaving cord slack to dress.
• Runs 10 Gigabit Ethernet aggregation and storage links over a screened Category 6A channel.
• Suits installations that specify a low smoke zero halogen jacket in occupied or enclosed spaces.
