Panduit UTPSP10BLY, MOD 24-4PR Stranded CAT6 10FT Black ROHS

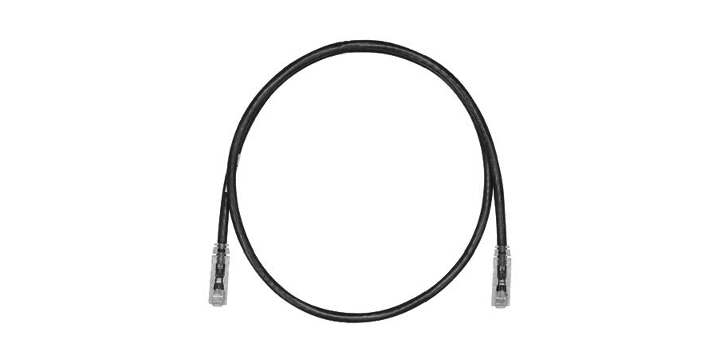

Panduit UTPSP10BLY Pan-Net patch chord is a 10 ft. CAT6 U/UTP (Unshielded Twisted Pair) cable with 24 AWG stranded conductors and a black Polyvinyl Chloride jacket. It features modular plug to modular plug terminations with 8 position plugs and supports T568A and T568B wiring. The cable has a 0.235 in. outside diameter and includes a clear boot. It is rated for 14 to 140 F operating temperatures and is ROHS compliant.

Panduit UTPSP10BLY Technical Specs

Product Identification

Sub brand	Pan-Net
Product type	Patch chord

Cable Construction & Physical Specs

Cable type	U/UTP - Unshielded Twisted Pair
Shielded	U/UTP - Unshielded Twisted Pair
Conductor size	24 AWG
Conductor Type	Stranded
Nominal cable outside diameter	0.235 in.
Outside diameter	0.235 in.
Jacket Material	Polyvinyl Chloride
Jacket Color	Black

Connectors, Wiring & Terminations

End connector	Modular Plug : Modular Plug
Connector 1 type	Modular Plug
Connector 2 type	Modular Plug
Plug type	8 Position
Wiring	T568A and T568B
End type	T568A/B : T568A/B
Plug housing material	Polycarbonate
Contact material	Copper
Boot material	Polycarbonate
Boot color	Clear

Environmental & Mechanical Ratings

Temperature rating	14 to 140 F
Operating temperature	14 to 140 Degrees Fahrenheit
Fire rating	General Purpose;LSZH

Panduit UTPSP10BLY Applications

• Use it to connect Ethernet equipment with modular plug to modular plug terminations for general-purpose network patching.
• Choose it for installations that require T568A and T568B wiring schemes for structured cabling consistency.
• A clear boot provides added strain relief at the connection point to help protect the termination during handling.
• It is suitable for environments where operating temperatures fall within 14 to 140 F.
