Panduit UTPSP14BUY, CBL ASSY MOD 24-4PR CAT6 T568A/B 14FT ROHS

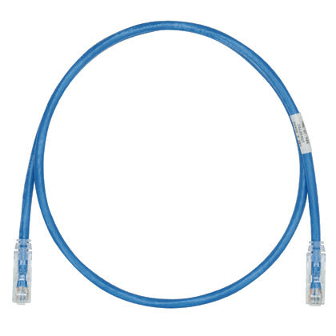

Panduit Pan-Net® UTPSP14BUY is a Category 6 U/UTP patch cord with 24 AWG stranded conductors for high-speed network connections. It uses modular plug to modular plug terminations with an 8 position plug type and T568B wiring scheme. This 14 ft (4.27 m) patch cord is blue with a clear boot, is RapidID™ enabled, and supports PoE/PoE+/PoE++ for powered network devices.

Panduit UTPSP14BUY Key Features

• Category 6 performance level for structured cabling patching needs.
• U/UTP construction with an unshielded (UTP) shield type.
• 24 AWG stranded conductor design.
• Modular plug to modular plug terminations with an 8 position plug type and T568B wiring scheme.
• RapidID™ enabled for identification support.
• Supports PoE/PoE+/PoE++ for powered network device connections.
• Includes a centered de-embedded plug, integral pair manager, and patented tangle-free latch.
• 100% performance tested for wire map, NEXT, and return loss.

Panduit UTPSP14BUY Technical Specs

General Product Information

Product type	Patch Cord
Sub brand	Pan-Net®
UPC	07498316932

Dimensions & Physical Specs

Overall length (ft.)	14
Overall length (m)	4.27
Nominal cable outside diameter (in.)	0.235
Nominal cable outside diameter (mm)	6
Color	Blue
Boot color	Clear
Plug housing material	Polycarbonate

Environmental & Mechanical Ratings

Flammability rating	CM
Minimum operating temperature (°C)	-10
Minimum operating temperature (°F)	14
Maximum operating temperature (°C)	60
Maximum operating temperature (°F)	140
Minimum storage temperature (°C)	-40
Minimum storage temperature (°F)	-40
Maximum storage temperature (°C)	70
Maximum storage temperature (°F)	158

Compliance & Certifications

Standards met	Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E channel and component standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
IEC variant	60603-7

Packaging

Standard package quantity	1
Standard package volume (cu. ft.)	0.0473
Standard carton quantity	10
Standard carton volume (cu. ft.)	0.4735

Panduit UTPSP14BUY Applications

• Connects Ethernet networks supporting 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), and 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards).
• Enables ATM network applications including 155 Mb/s ATM, 622 Mb/s ATM, and 1.2 Gb/s ATM.
• Supports Token ring 4/16 connectivity in compatible network environments.
• Handles digital video and broadband/baseband analog video signal connections where these formats are used.
• Provides a patching connection for Voice over Internet Protocol (VoIP) deployments.
