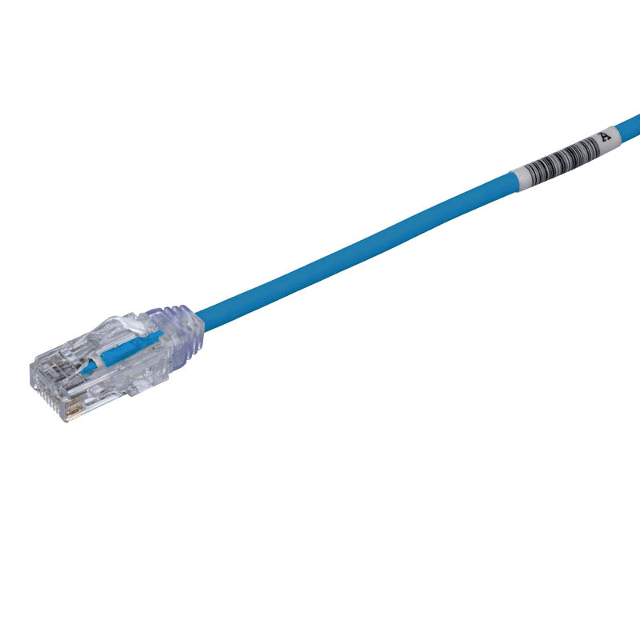

Panduit UTPSP1BUY, UTP Patch Chord 24AWG Stranded Blue 1 ft

Panduit UTPSP1BUY is a Cat 6 U/UTP patch chord with 24 AWG stranded copper conductors and modular plug terminations on both ends. It features a blue Polyvinyl Chloride jacket with a clear boot for easy visual identification. The patch chord supports T568A and T568B wiring and meets IEC 60603-7 plug type requirements. It is rated for 14 to 140 F operating temperatures.

Panduit UTPSP1BUY Technical Specs

Network & Connectivity

Category	Cat 6
Cable type	U/UTP
Shielding	U/UTP - Unshielded Twisted Pair
Wiring	T568A and T568B
End type	T568A/B : T568A/B

Connectors & Termination

Plug type	Meets IEC 60603-7
Connector type	Plug Modules to Plug Modules
End connector	Modular Plug : Modular Plug
Connector 1 type	Modular Plug
Connector 2 type	Modular Plug
Contact material	Copper

Electrical & Physical Specs

Conductor size	24 AWG
Conductor Type	Stranded
Conductor stranding	Stranded Copper
Nominal cable outside diameter	0.24 in.
Outside diameter	0.235 in.
Length	1 ft.

Materials & Color

Jacket Material	Polyvinyl Chloride
Plug housing material	Polycarbonate
Boot material	Polycarbonate
Color	Blue
Jacket Color	Blue
Boot color	Clear

Environmental & Mechanical Ratings

Temperature rating	14 to 140 F
Operating temperature	14 to 140 Degrees Fahrenheit
Fire rating	General Purpose;LSZH

Product Identification

Sub brand	Pan-Net
Product type	Patch Chord

Panduit UTPSP1BUY Applications

• Supports fast, reliable network connections for patching and equipment interconnect applications.
• Meets tight routing needs and frequent moves, adds, and changes where flexibility is important.
• Enables quick visual identification in cable management and identification workflows.
• Works in typical indoor networking environments within the stated operating temperature range.
