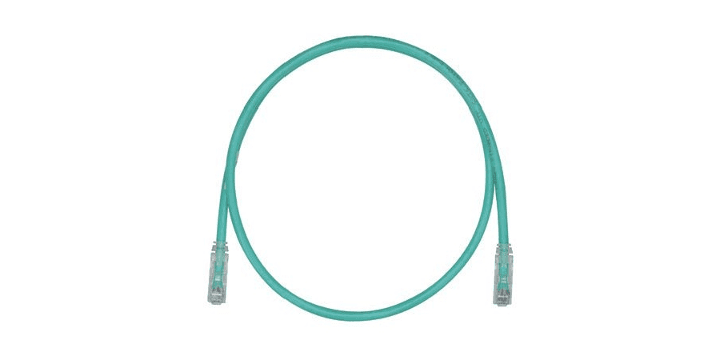

Panduit UTPSP1GRY, Patch Cord U/UTP 24AWG Stranded Green 1 ft

Panduit UTPSP1GRY is a Cat 6 U/UTP patch chord with 24 AWG stranded copper conductors and modular plug terminations on both ends. It features a green Polyvinyl Chloride jacket and a clear polycarbonate boot for easy visual identification. UTPSP1GRY supports T568A and T568B wiring and is rated for 14 to 140 F operating temperature.

Panduit UTPSP1GRY Technical Specs

Product Identification & Type

Category	Cat 6
Cable type	U/UTP
Shielding	U/UTP - Unshielded Twisted Pair
Product type	Patch Chord
Sub brand	Pan-Net

Conductors & Termination

Conductor size	24 AWG
Conductor Type	Stranded
Conductor stranding	Stranded Copper
End connector	Modular Plug : Modular Plug
Connector 1 type	Modular Plug
Connector 2 type	Modular Plug
Plug type	8 Position
Wiring	T568A and T568B
End type	T568A/B : T568A/B
Contact material	Copper

Materials & Color

Plug housing material	Polycarbonate
Jacket Material	Polyvinyl Chloride
Jacket Color	Green
Boot material	Polycarbonate
Boot color	Clear

Dimensions

Length	1 ft.
Lengths	1 FT. : 0.3 M
Nominal cable outside diameter	0.235 in.
Outside diameter	0.235 in.

Environmental & Mechanical Ratings

Temperature rating	14 to 140 F
Operating temperature	14 to 140 Degrees Fahrenheit

Compliance & Certifications

Fire rating	General Purpose;LSZH

Panduit UTPSP1GRY Applications

• Use it to connect Ethernet equipment in network closets where patching between devices and network hardware is required.
• It supports patch panel connections to help organize and route network links in structured cabling setups.
• At the work area, it provides a workstation drop connection for linking end devices to the network.
