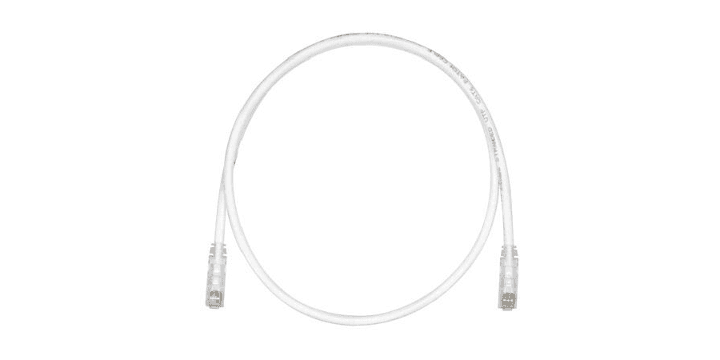

Panduit UTPSP1Y, Patch Cord U/UTP 24AWG Stranded 1 ft

Panduit UTPSP1Y is a 1 ft. Pan-Net patch chord for Ethernet connections in U/UTP - Unshielded Twisted Pair networks. It features 24 AWG stranded conductors in a 4 pair construction with a Polyvinyl Chloride jacket. This off-white cord is terminated with modular plug connectors on both ends, using an 8 Position plug type and T568A/B : T568A/B wiring. Temperature Rating is 14 to 140 F, and Fire Rating is General Purpose;LSZH.

Panduit UTPSP1Y Technical Specs

Product Identification

Product type	Patch Chord
Sub brand	Pan-Net

Cable Construction & Physical Specs

Shielding	U/UTP - Unshielded Twisted Pair
Conductor size	24 AWG
Conductor Type	Stranded
Pair count	4 Pair
Length	1 ft.
Nominal cable outside diameter	0.27 in.
Outside diameter	0.235 in.

Connectors & Wiring

Connector 1 type	Modular Plug
Connector 2 type	Modular Plug
Plug type	8 Position
End type	T568A/B : T568A/B
Contact material	Copper

Materials & Colors

Jacket Material	Polyvinyl Chloride
Boot material	Polycarbonate
Plug housing material	Polycarbonate
Color	White
Jacket Color	Off-White
Boot color	Clear

Environmental & Safety Ratings

Temperature rating	14 to 140 F
Fire rating	General Purpose;LSZH

Panduit UTPSP1Y Applications

• Connect Ethernet network equipment using modular plug terminations on both ends for everyday patching in general-purpose environments.
• Use the 1 ft. patch chord length for short, direct connections in tight spaces.
• Maintain consistent end-to-end connectivity with T568A/B : T568A/B wiring.
