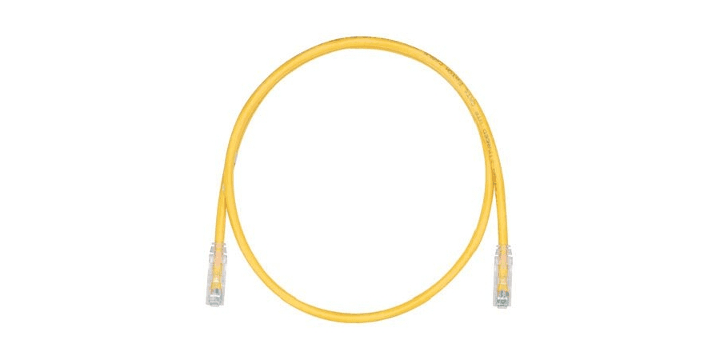

Panduit UTPSP1YLY, Patch Cord UTP 24AWG Stranded Yellow 1 ft

Panduit UTPSP1YLY is a Cat 6 U/UTP patch chord with 24 AWG stranded conductors, a 4 pair construction, and a yellow Polyvinyl Chloride jacket. This 1 ft. RJ45 to RJ45 cable is designed for short network connections where a compact lead supports routing and cable management. It uses Modular Plug terminations with copper contacts and polycarbonate housings, and it is rated for 14 to 140 F operating temperature.

Panduit UTPSP1YLY Technical Specs

Product Identification

Sub brand	Pan-Net
Product type	Patch Chord

Cable Construction & Electrical

Category	Cat 6
Shielding type	U/UTP - Unshielded Twisted Pair
Pair count	4 pair
Conductor size	24 AWG
Conductor Type	Stranded

Connectors & Termination

Connector type	RJ45 to RJ45
Plug type	8 position
Connector 1 type	Modular Plug
Connector 2 type	Modular Plug
End type	T568A/B : T568A/B
Contact material	Copper
Plug housing material	Polycarbonate

Jacket, Boot & Physical Dimensions

Jacket Material	Polyvinyl Chloride
Jacket Color	Yellow
Boot material	Polycarbonate
Boot color	Clear
Outside diameter	0.235 in.

Compliance & Certifications

Fire rating	General Purpose;LSZH

Panduit UTPSP1YLY Applications

• Connects RJ45 to RJ45 network ports when a short 1 ft. lead is preferred for neat, close-proximity connections.
• Improves routing in tight spaces where excess cable length can make organization difficult.
• Installs between patch panels, switches, and workstations to complete short network links.
• Aids port identification and cable management by combining a yellow jacket with a clear boot.
