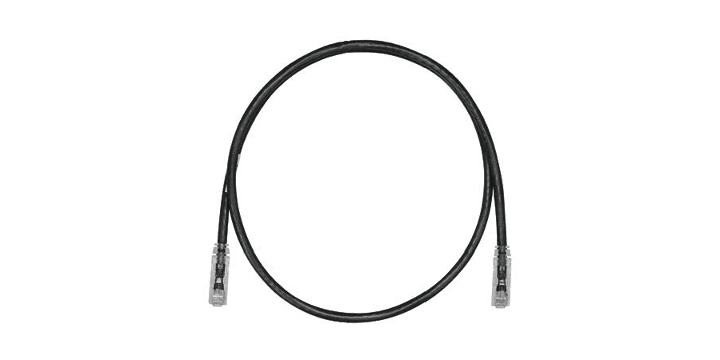

Panduit UTPSP7BLY, CBL ASSY MOD 24-4PR Stranded Cable

Panduit UTPSP7BLY is a Cat 6 patch chord with RJ45 to RJ45 connectivity for network and data applications. It features 24 AWG stranded conductors in a 4 pair U/UTP - Unshielded Twisted Pair construction with a black Polyvinyl Chloride jacket. This 7 ft. patch chord has a 0.235 in. nominal cable outside diameter and includes clear polycarbonate boots. It is terminated with modular plugs and wired T568A/B : T568A/B.

Panduit UTPSP7BLY Technical Specs

Product Identification

Sub brand	Pan-Net
Product type	Patch Chord
Category	Cat 6

Cable Construction & Physical Specs

Shielding	U/UTP - Unshielded Twisted Pair
Pair count	4 pair
Conductor size	24 AWG
Conductor Type	Stranded
Nominal cable outside diameter	0.235 in.
Length	7 ft.
Jacket Material	Polyvinyl Chloride
Jacket Color	Black
Color	Black

Connectivity & Termination

Connector type	RJ45 to RJ45
Connector 1 type	Modular Plug
Connector 2 type	Modular Plug
Plug type	8 Position
Wiring	T568A/B : T568A/B
Contact material	Copper
Plug housing material	Polycarbonate
Boot material	Polycarbonate
Boot color	Clear

Environmental & Mechanical Ratings

Operating temperature	14 to 140 Degrees Fahrenheit
Temperature rating	14 to 140 F

Compliance & Certifications

Fire rating	General Purpose;LSZH

Panduit UTPSP7BLY Applications

• Enables RJ45 to RJ45 patching for network and data applications requiring modular plug terminations.
• Creates straightforward connections between equipment in racks, panels, and workstations.
• Offers a practical option for flexible routing in patching setups that benefit from stranded conductors.
