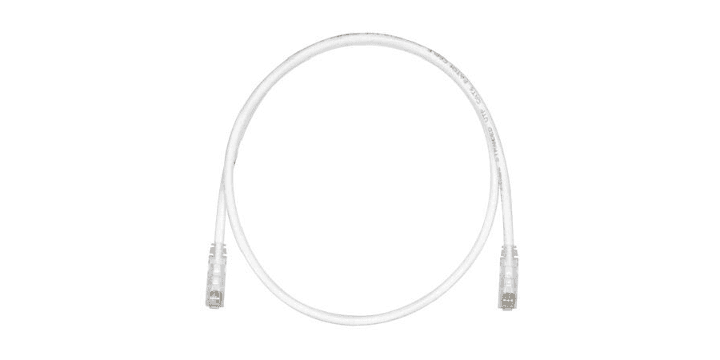

Panduit UTPSP7Y, COPPER CAT 6 Patch Cord OFF

Panduit UTPSP7Y is a copper Cat 6 patch chord with a 7 ft. U/UTP - Unshielded Twisted Pair design and 24 AWG stranded conductors. It features a white Polyvinyl Chloride jacket and polycarbonate plug housing for clean, durable RJ45 to RJ45 connections. This patch chord is rated for 14 to 140 Degrees Fahrenheit operating temperature and uses T568A/B : T568A/B end type.

Panduit UTPSP7Y Technical Specs

Product Identification

Product type	Patch Chord
Category	Cat 6
Sub brand	Pan-Net

Construction & Physical Specs

Shielding	U/UTP - Unshielded Twisted Pair
Pair count	4 pair
Conductor Material	Copper
Conductor size	24 AWG
Conductor Type	Stranded
Length	7 ft.
Nominal cable outside diameter	0.23 in.
Jacket Color	White
Jacket Material	Polyvinyl Chloride

Connectivity & Termination

Connector type	RJ45 to RJ45
Connector 1 type	Modular Plug
Connector 2 type	Modular Plug
Plug type	8 Position
End type	T568A/B : T568A/B
Plug housing material	Polycarbonate

Environmental & Mechanical Ratings

Operating temperature	14 to 140 Degrees Fahrenheit
Temperature rating	140 F

Compliance & Certifications

Fire rating	General Purpose;LSZH

Panduit UTPSP7Y Applications

• Connect RJ45 to RJ45 network ports between workstations and network equipment for everyday Ethernet patching.
• Use it for patch panel connections when a short, flexible patch chord is needed for organized routing.
• Link switches to devices in network closets or work areas to complete end-to-end connectivity.
