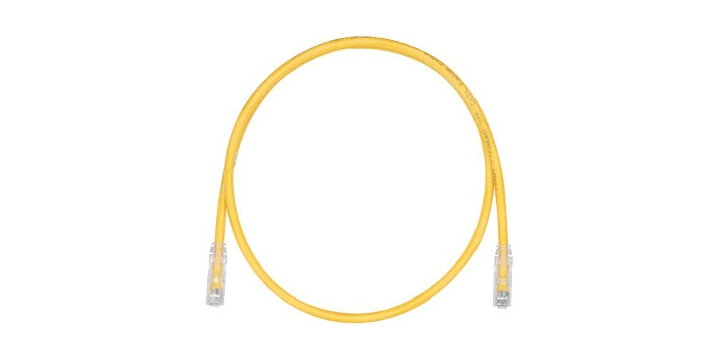

Panduit UTPSP7YLY, MOD 24-4PR Stranded CAT6 IP5 7FT YEL

Panduit Pan-Net UTPSP7YLY is a Cat 6 U/UTP (Unshielded Twisted Pair) patch chord with 24 AWG stranded conductors and an LSZH Material jacket. This 7 ft. yellow patch cord features modular plug terminations with an 8 position plug type for network patching connections. It supports T568A and T568B wiring with T568A/B : T568A/B end type and is rated 14 to 140 F with a General Purpose;LSZH fire rating.

Panduit UTPSP7YLY Technical Specs

Product Identification

Brand/Sub brand	Panduit Pan-Net
Product type	Patch Chord
Category	Cat 6

Physical Specs

Length	7 ft.
Color	Yellow
Outside diameter	0.235 in.

Cable Construction

Shielding	U/UTP - Unshielded Twisted Pair
Conductor size	24 AWG
Conductor Type	Stranded
Jacket Material	LSZH Material

Connector & Termination Details

Connector 1 type	Modular Plug
Connector 2 type	Modular Plug
Plug type	8 Position
Wiring	T568A and T568B
End type	T568A/B : T568A/B
Contact material	Copper
Plug housing material	Polycarbonate
Boot material	Polycarbonate
Boot color	Clear

Environmental & Mechanical Ratings

Temperature rating	14 to 140 F
Operating temperature	14 to 140 Degrees Fahrenheit
Fire rating	General Purpose;LSZH

Panduit UTPSP7YLY Applications

• Use it for network patching connections that require modular plug terminations and an 8 position plug type.
• Install it in racks, closets, and work areas to connect equipment and network ports.
• Choose the LSZH Material jacket for installations where low-smoke, zero-halogen performance is preferred.
• Rely on T568A and T568B wiring with T568A/B : T568A/B end type for compatibility in mixed wiring environments.
