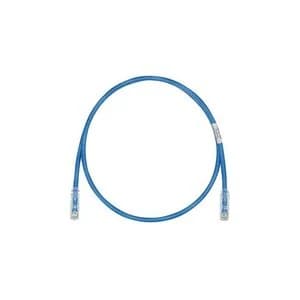

Panduit UTPSP8BUY, Cat 6 24 AWG UTP Patch Cord 8 ft. Blue
SKU:UTPSP8BUY
● In stock
ea
Description
Panduit UTPSP8BUY is an 8 ft. Category 6 patch cord with TX6 PLUS modular plugs at both ends, in blue. Blue is the default color for general data in most schemes, so this is the cord that gets ordered by the box and consumed across an office floor. Eight feet is the practical middle length: long enough to reach from a patch panel to equipment a few rack units away with the slack dressed into a manager, short enough that the excess never has to be coiled. The 24 AWG four-pair stranded cable runs Gigabit Ethernet and, within the distances the 10GBASE-T standards allow, 10 Gigabit.
Panduit UTPSP8BUY Technical Specs
Product Classification
| Product type | Copper patch cord |
|---|---|
| Performance category | Category 6 |
| Conductor size | 24 AWG, 4 pair, stranded |
| Shielding | U/UTP - unshielded twisted pair |
| Plug type | TX6 PLUS modular plug (RJ45), both ends |
Length & Color
| Length | 8 ft. (2.44 m) |
|---|---|
| Color | Blue |
Performance
| Standards met | Exceeds ANSI/TIA-568.2-D and ISO 11801 Class E |
|---|---|
| ANSI/TIA-1096-A | Meets |
| IEC 60603-7 | Meets |
| Wiring scheme | T568A/B |
| Applications supported | 10BASE-T, 100BASE-T, 1000BASE-T, 10GBASE-T over the limited distances defined by that standard, 155 and 622 Mb/s and 1.2 Gb/s ATM, Token Ring 4/16, digital and analog video, VoIP |
Power over Ethernet & Durability
| Connection cycles | 2,500 |
|---|---|
| IEEE 802.3af / 802.3at | Rated |
| IEEE 802.3bt type 3 and type 4 | Rated |
Compliance & Certifications
| UL 1863 | Approved |
|---|---|
| CE | Compliant |
| RoHS Compliant | Compliant |
| UNSPSC code | 43223303 |
Packaging
| Sold as | Each |
|---|
Panduit UTPSP8BUY Applications
- Patches switch ports to a Category 6 panel as the standard general-data cord on an office floor.
- Stocks in volume for moves, adds and changes where one color keeps the patch field readable.
- Connects a work-area outlet to a desktop or access point with the slack dressed into a manager.
- Feeds PoE devices at 2,500 rated connection cycles with 802.3af / 802.3at and 802.3bt Type 3 and Type 4.
