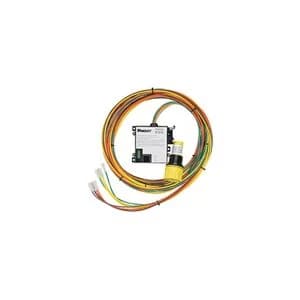

Panduit VS-AVT-C08-L10, VeriSafe Absence of Voltage Tester, 8 ft. Cable

Panduit VS-AVT-C08-L10 is a VeriSafe Absence of Voltage Tester - an installed device that verifies the absence of voltage inside an enclosure at the push of a button, before the door is opened. That is the whole point of it: the check that normally means opening the panel and entering the hazard with a hand-held meter is performed with the enclosure still closed, removing the exposure instead of dressing it in PPE. This configuration ships as the tester with 10 ft. sensor leads, an 8 ft. system cable and an industrial lithium battery, and is built to UL 1436 and IEC 61508.

Panduit VS-AVT-C08-L10 Technical Specs

Product Classification

Product type	Absence of voltage tester
Product line	VeriSafe
Test initiation	Push button
Test performed	Before the enclosure is opened
Power source	Industrial lithium battery

Included Components

AVT tester	Included
Sensor leads	Included
System cable	Included
Industrial lithium battery	Included

Cable & Lead Lengths

Sensor lead length	10 ft.
System cable length	8 ft.

Compliance & Certifications

UL 1436	Yes
IEC 61508	Yes
UL 508	Yes
CSA C22.2 No. 14-13	Yes
IEC / UL / CSA C22.2 61010-1	Yes
IEC / UL / CSA 61010-2-030-12	Yes
UL 50E	Yes
UNSPSC code	41113600

Packaging

Sold as	Each

Panduit VS-AVT-C08-L10 Applications

• Verifies de-energization before a panel is opened, so nobody is exposed while performing the test.
• Standardizes the absence-of-voltage step across a plant instead of leaving it to meter technique.
• Suits equipment opened often - motor control centres, control panels, disconnects - where exposure accumulates.
• Shortens lockout/tagout turnaround with a single repeatable push-button check.
