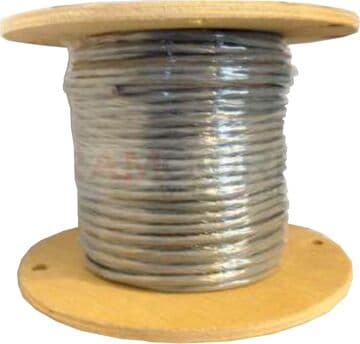

RG213 Cable Stranded 2x96% BC Braid PVC Jacket Per Foot
Description
RG213 coaxial cable, 50 Ohm, with PE dielectric and an overall PVC jacket. This cable features 2 bare copper braid shields at 96% each and is listed for indoor applications.
Applications
- Use in indoor applications where RG213 coaxial cable is required.
Specifications
| Attribute | Value |
|---|---|
| Conductor Gauge Size | 13 AWG |
| Conductor Type | Stranded |
| Shield Type | 2 x 96% BC Braid |
| Jacket Material | Gray PVC-II-PVC Non-Contaminating |
| Conductor Material | Bare Copper |
| Approvals | CL2X |
| O.D. (Inches Nom.) | 0.45 |
| Item Type | RG213 |
| Weight /LBS per 1000FT | 115 |
| Impedance | 50 Ohms |
| Flooded (Y N) | No |
| Outdoor (Y N) | No |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
