Introduction
PLTC cable, also known as power limited tray cable, plays a crucial role in modern electrical systems. This specialized cable type offers unique advantages for various applications, particularly in industrial and commercial settings. Understanding the differences between PLTC cable and other tray cable types is essential for engineers, installers, and facility managers seeking to optimize their electrical infrastructure.
This article explores the key characteristics of PLTC cable and compares it to other tray cable options. We'll examine the specifications and uses of PLTC cable, highlighting its advantages over alternative tray cable types. By the end, readers will have a clear understanding of when and why to choose PLTC cable for their projects, as well as the specific benefits it offers in different applications.
Types of Tray Cables
Tray cables come in various types, each designed for specific applications and environments. Understanding the differences between these types is crucial for selecting the right cable for a particular project. Let's explore three common types of tray cables: PLTC, TC, and ITC.
PLTC (Power-Limited Tray Cable)
Power-limited tray cable, or PLTC, plays a significant role in modern electrical systems. These cables are designed for use in power-limited circuits, such as alarm systems and industrial control applications. PLTC cables have a voltage rating of 300V, making them suitable for low-voltage applications.
One of the key features of PLTC cables is their durability. They can withstand a wide temperature range, with conductor operating temperatures reaching up to 105°C. This makes them ideal for use in various environments, including wet and dry locations. PLTC cables are also sunlight resistant, adding to their versatility.
PLTC cables find applications in numerous industries and systems, including:
- Mass transit systems
- Industrial control systems
- Computer interconnects
- Intercom systems
- Point of sale systems
- Burglar alarms
- Business machines
- Cash registers
- Wind turbines
The UL 13 standard tests the safety of PLTC cables used for low-voltage power and control applications, ensuring their reliability and performance.
TC (Tray Cable)
Tray cable, or TC, is a versatile option for various electrical applications. These cables are rated for 600 volts, making them suitable for higher voltage applications compared to PLTC cables. TC cables are commonly used in industrial power and control circuits where flame-retardant properties are desired.
TC cables can be installed in various locations, including:
- Cable trays
- Raceways
- Outdoor locations supported by messenger wires
One notable feature of TC cables is their UL listing for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. This makes them suitable for use in potentially dangerous environments.
In industrial settings where qualified personnel handle the installation and maintenance, TC-ER (exposed run) cables can be used. These cables comply with crush and impact requirements, allowing them to be installed between cable trays and utilization equipment without continuous support for distances up to six feet.
ITC (Instrumentation Tray Cable)

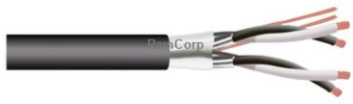

Instrumentation tray cable, or ITC, is designed specifically for use in instrumentation and control circuits. These cables can operate at up to 300 volts, making them ideal for low-power applications.
ITC cables come in various configurations, including:
- Shielded or unshielded constructions
- Multiple single conductors
- Unshielded or shielded twisted pairs
- With or without metal armor
The voltage rating for ITC cables is 300V, similar to PLTC cables. They are available in sizes ranging from 22 AWG to 12 AWG, providing flexibility for different applications.
ITC cables are particularly useful in industrial settings where qualified personnel handle the installation and maintenance. They can be installed in various locations, such as:
- Cable trays
- Raceways
- Hazardous locations (as permitted by specific codes)
- Aerial installations on messenger wires
- Direct burial (when identified for such use)
- Under raised floors in rooms with industrial process control equipment
- Under raised floors in information technology equipment rooms
It's worth noting that ITC cables should be separated from 600-volt power cabling to avoid noise or cross-talk, even when shielded. This is typically achieved through a barrier strip within the cable tray.
Understanding these different types of tray cables helps in selecting the most appropriate option for specific applications, ensuring optimal performance and compliance with relevant standards and regulations.
PLTC Cable Specifications and Uses
Power-limited tray cable (PLTC) plays a crucial role in various industrial and commercial applications. This versatile cable type offers unique features and benefits that make it suitable for specific environments and uses. Let's delve into the key specifications and typical applications of PLTC cable.
Voltage limitations
PLTC cable is designed for use in power-limited circuits, with a voltage rating of 300 volts. This voltage limitation is a defining characteristic of PLTC cables, making them ideal for low-voltage applications. The 300-volt rating ensures that PLTC cables can handle the electrical requirements of many industrial control and instrumentation systems while maintaining safety standards.
It's important to note that PLTC cables are not suitable for higher voltage applications. In such cases, other tray cable types, such as TC (Tray Cable), would be more appropriate.
Construction features
PLTC cables have several unique construction features that contribute to their performance and durability:
- Conductors: PLTC cables consist of two or more insulated conductors, typically ranging from 22 AWG to 12 AWG. These conductors are made of copper, which can be either solid or stranded.
- Insulation: The conductors are insulated with materials rated for 300 volts, often using premium-grade, color-coded PVC. This insulation provides electrical protection and helps identify individual conductors.
- Cable core: The core of a PLTC cable can be arranged in various configurations, including parallel conductors, twisted or parallel conductor groups, or a combination of these.
- Shielding: PLTC cables may include a metallic shield or a metallized foil shield with drain wire(s). This shielding can be applied over the entire cable core or individual conductor groups, providing protection against electromagnetic interference.
- Outer jacket: The cable is encased in a nonmetallic jacket that is both sunlight and moisture-resistant. This outer layer provides additional protection against environmental factors.
- Fire resistance: PLTC cables are listed as resistant to the spread of fire, enhancing safety in various installations.
- Wet location rating: Some PLTC cables are specifically designed for use in wet locations, either through a specialized listing or by incorporating a moisture-impervious metal sheath.
These construction features contribute to the cable's durability, flexibility, and suitability for various industrial environments.
Typical industrial applications
PLTC cables find use in a wide range of industrial applications, particularly in power-limited circuits and control systems. Some common applications include:
- Industrial control systems: PLTC cables are extensively used in instrument and control wiring, connecting sensors, transducers, and other control devices.
- Mass transit systems: The durability and flexibility of PLTC cables make them suitable for use in transportation infrastructure.
- Computer interconnects: These cables can be used to establish connections between computer systems in industrial settings.
- Intercom systems: PLTC cables offer reliable communication links for intercom installations.
- Point of sale systems: Retail environments often utilize PLTC cables for connecting cash registers and other point of sale devices.
- Business machines: Various office and industrial equipment can benefit from the use of PLTC cables.
- Petrochemical refineries: The robust construction of PLTC cables makes them suitable for use in challenging environments like refineries.
- Utility substations: One of the most common applications for PLTC cables is in electrical substations, where they play a crucial role in control and monitoring systems.
- Exposed runs: In industrial settings, PLTC-ER (exposed run) cables can be installed between cable trays and equipment without continuous support for distances up to six feet, providing installation flexibility.
The versatility of PLTC cables, combined with their specific voltage rating and construction features, makes them an essential component in many industrial and commercial electrical systems. Their ability to withstand harsh environments, resist sunlight and moisture, and provide reliable performance in power-limited applications has led to their widespread adoption across various industries.
Advantages of PLTC Over Other Tray Cables
Power Limited Tray Cable (PLTC) offers several advantages over other tray cable types, making it a preferred choice for various industrial applications. These benefits contribute to its growing popularity and widespread use in power-limited circuits.
Cost-effectiveness
One of the key advantages of PLTC cable is its cost-effectiveness. While the initial cost of PLTC cable might be slightly higher than some alternatives, it provides significant savings in the long run. This is particularly evident when considering installation and maintenance costs.
PLTC-ER (exposed run) cables, a subset of PLTC cables, offer additional cost benefits. These cables can be installed between cable trays and equipment without continuous support for distances up to six feet. This eliminates the need for additional protection such as conduit or armor, which can lead to substantial cost savings in materials and labor. The long life and durability of PLTC cables also contribute to their cost-effectiveness
Flexibility and ease of installation
PLTC cables are designed with flexibility in mind, making them easier to install in various environments. Their construction allows for easy bending and routing through cable trays and other spaces, simplifying the installation process.
The exposed run capability of PLTC-ER cables further enhances installation flexibility. While standard tray cables cannot extend more than six feet outside a tray without armor or a raceway, ER-rated cables can go more than 50 feet if there is sufficient protection and support. This feature reduces the number of cables needed and simplifies cable management.
PLTC cables also offer an easy strip design, which facilitates quicker terminations and connections. The color-coded conductors further streamline the installation process by making it easier to identify and connect individual wires.
Suitability for power-limited circuits
PLTC cables are specifically designed for use in power-limited circuits, making them ideal for a wide range of low-voltage applications. With a voltage rating of 300 volts, these cables are well-suited for industrial control systems, instrumentation, and various other power-limited applications.
The suitability of PLTC cables for power-limited circuits extends to hazardous locations as well. They are approved for use in Class I and II, Division 2 hazardous locations, making them a versatile choice for petrochemical refineries and other potentially dangerous environments.
PLTC cables can be used in various configurations, including direct burial, open trays, free air, or troughs with continued rigid cable support. They maintain efficiency even when encased in concrete, adding to their versatility.
Moreover, PLTC cables can be routed in the same tray as 600V power and control tray cables when separated by a divider. This feature allows for efficient cable management in complex industrial setups.
The unique characteristics of PLTC cables make them suitable for a wide range of applications, including:
- Industrial control systems (instrument and control wiring, sensors, and transducers)
- Intercom systems
- Point of sale systems
- Business machines
- Mass transit systems
- Utility substations
In conclusion, the advantages of PLTC cables over other tray cable types are significant. Their cost-effectiveness, flexibility, ease of installation, and suitability for power-limited circuits make them an excellent choice for many industrial and commercial applications. As businesses continue to adopt new technologies and solutions, the demand for PLTC cables is expected to grow, driving further innovations in this field.
Conclusion
Power Limited Tray Cable (PLTC) has a significant influence on modern electrical systems, offering unique advantages for various industrial and commercial applications. Its durability, flexibility, and suitability for power-limited circuits make it a go-to choice for many projects. The cost-effectiveness, ease of installation, and ability to withstand harsh environments further cement PLTC's position as a reliable option for engineers and facility managers.
To wrap up, PLTC cable's specific voltage rating and construction features have led to its widespread adoption across different industries, from mass transit systems to utility substations. Its versatility and performance in power-limited applications continue to drive innovations in the field. Looking for Tray Cable? Contact us here at Ramcorp Wire, our team will be more than happy to assist you. As technology advances, PLTC cables are likely to play an even bigger role in shaping the future of electrical infrastructure.
Looking for PLTC Tray Cable?
Our team will be more than happy to guide you to the right choice for your application.
FAQs
What are the typical uses for PLTC cables?
PLTC cables are primarily utilized in power-limited circuits, and find applications in various systems including mass transit, computer interconnects, business machines, intercom systems, and. These cables typically feature copper conductors.
How do PLTC ER cables differ from TC ER cables?
TC cables, commonly used in construction and electrical projects, are versatile and can handle up to 600V, suitable for both indoor and outdoor applications. In contrast, PLTC cables are specifically designed for power-limited applications and are rated for up to 300V.
What are the three primary types of cable trays?
The main types of cable trays are:
- Ladder Cable Tray: Known for its distinctive design, this tray is frequently used due to its practicality.
- Perforated Cable Tray: This type is favored for managing both instrumentation and power cables due to its design and functionality.
- Solid Bottom Cable Tray: This tray type is noted for its solid construction.
What distinguishes tray cables from regular cables?
Tray cables are distinguished by their robust construction, which can include armor over individual conductors and a sturdy jacket designed to resist heavy abrasion. These features make them suitable for rigorous environments, unlike standard multi-conductor cables.
*Disclaimer: This article is provided for informational purposes only and is not installation advice. Installing wire & cable can be dangerous and pose a risk of possible electric shock or other hazards. Consult a licensed professional for installation advice. Images are for illustration purposes and may not reflect actual installed products.
