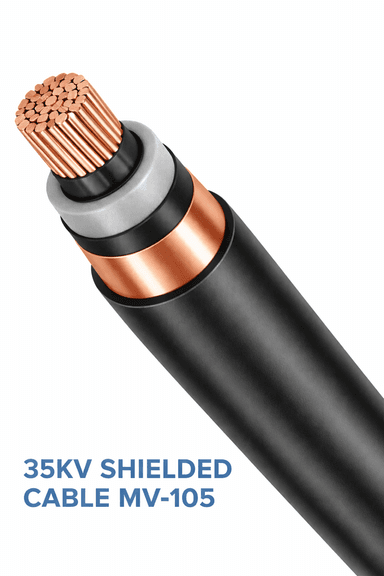

35kV Shielded EPR/PVC Single Conductor Cable (MV-105)

35kV Shielded EPR/PVC Single Conductor cables rated Type MV-105 are medium-voltage power cables designed for reliable operation in power distribution circuits up to 35kV. These cables feature Ethylene Propylene Rubber (EPR) insulation with extruded semiconducting insulation and strand shields, combined with a helically applied copper tape metallic shield and a sunlight-resistant PVC outer jacket for long-term durability in demanding environments.

Designed for wet and dry locations, these MV-105 cables are suitable for installation in open air, conduit, duct systems, or direct burial. Common applications include utility substations, generating stations, chemical plants, refineries, steel mills, and heavy industrial facilities where dependable medium-voltage performance is critical.

The EPR insulation provides excellent dielectric strength, thermal stability, and resistance to electrical stress, while the copper tape shield ensures proper grounding and minimizes electrical interference. The PVC jacket delivers added protection against abrasion, moisture, sunlight, and environmental exposure.

Key Features & Specifications

• Voltage Rating: 35kV

• Cable Type: Single Conductor, Shielded

• Insulation: EPR (Ethylene Propylene Rubber)

• Shielding: Extruded semiconducting shields with copper tape metallic shield

• Jacket: Black, sunlight-resistant PVC

• Temperature Rating: 105°C

• Standards & Listings: UL Listed Type MV-105 (UL 1072), ICEA S-93-639 (NEMA WC-74)

• Ampacity: Based on NEC underground duct installations per NEC Table 310.60(C)

Browse our selection of 35kV shielded EPR/PVC single conductor MV-105 cables available in multiple conductor sizes and configurations to meet utility, industrial, and commercial power distribution requirements.
