35kV Shielded EPR/PVC 1 Conductor Cable – 500 KCMIL MCM (MV-105)

Product Overview

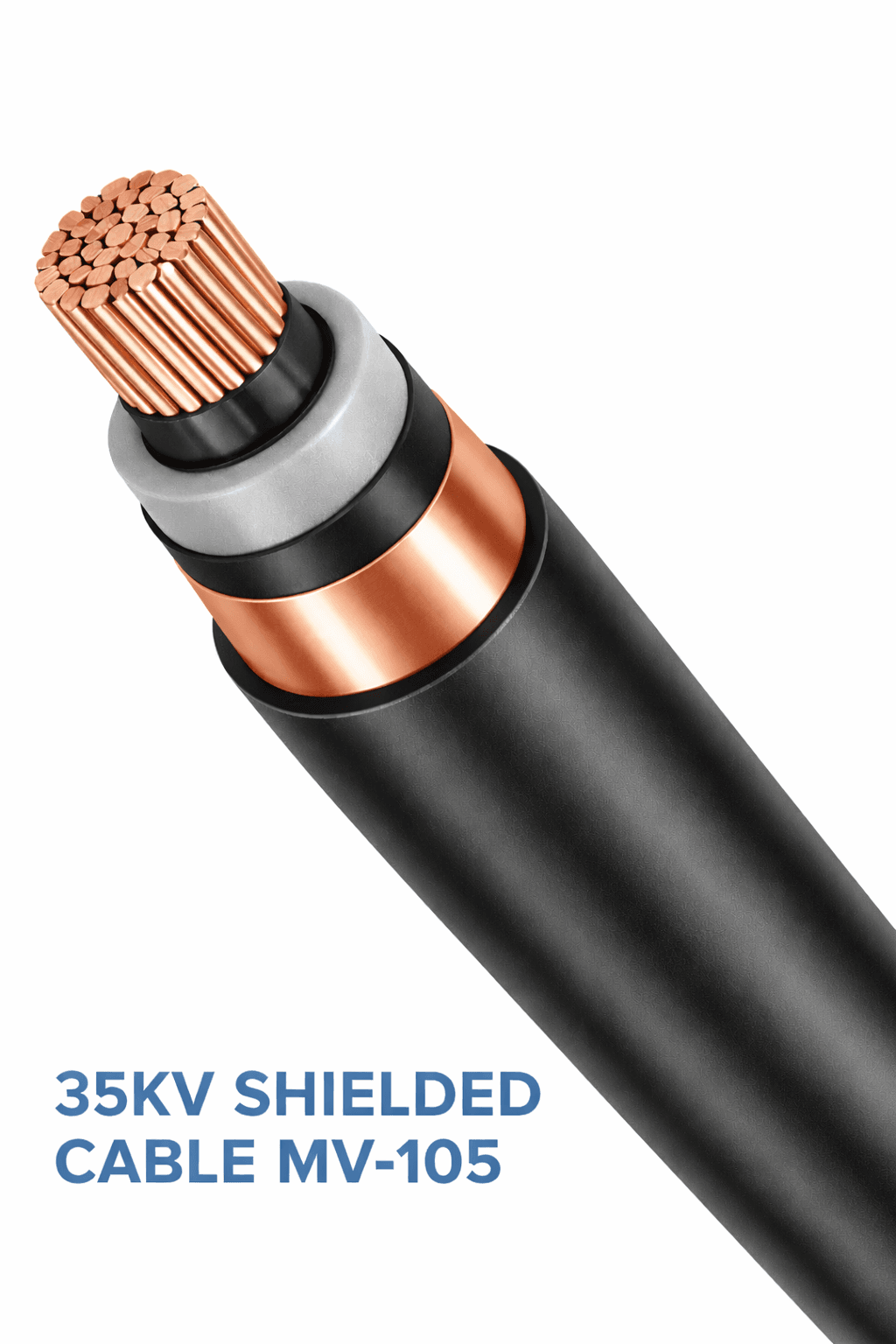

The 35kV Shielded EPR/PVC Single Conductor Cable (MV-105), Part No. MV105-35KV-CU-500-1C, is a medium-voltage power cable designed for power distribution circuits up to 35kV. It features a 500 MCM Class B stranded bare copper conductor, 133% EPR insulation, extruded semiconducting shields, a copper tape metallic shield, and a sunlight-resistant black PVC jacket.

Rated for 105°C continuous operation, this cable is suitable for wet and dry locations and may be installed in open air, conduit, duct systems, or direct burial. Typical applications include utility substations, generating stations, industrial plants, refineries, and heavy electrical infrastructure.

Electrical Ratings

Voltage Rating	35kV
Temperature Rating	105°C
Ampacity	500 Amps (per conductor)
Insulation Level	133%

Construction Details

Conductor Size	500 KCMIL/MCM
Conductor Material	Bare Copper
Conductor Type	Class B Stranded
Conductor Count	Single Conductor
Insulation Material	EPR (Ethylene Propylene Rubber)
Insulation Shield	Extruded Semiconducting
Metallic Shield	Helically Applied Copper Tape
Overall Jacket	Black PVC (Sunlight Resistant)
Armor	No
Ground Wires	No

Physical Dimensions & Weight

Parameter	Value
Insulation Thickness	0.420 in.
Nominal Insulation O.D.	1.62 in.
Overall Jacket Thickness	0.110 in.
Nominal Overall O.D.	1.90 in.
Approximate Weight	2,925 lbs per 1,000 ft

Standards & Compliance

UL	Listed Type MV-105 (UL 1072)
ICEA	S-93-639 (NEMA WC-74)
CSA	Approved
NEC	Ampacity based on NEC Table 310.60(C)

Typical Applications

• Medium-voltage power distribution systems
• Utility substations and switchgear
• Electrical generating stations
• Chemical plants and refineries
• Industrial and infrastructure power systems

Ordering Information

Part Number	MV105-35KV-CU-500-1C
Cable Type	35kV Shielded EPR/PVC Single Conductor (MV-105)
Conductor Size	500 KCMIL/MCM
Jacket Color	Black
Sold By	Foot
Minimum Order	1 Foot
Reel Lengths	Available
